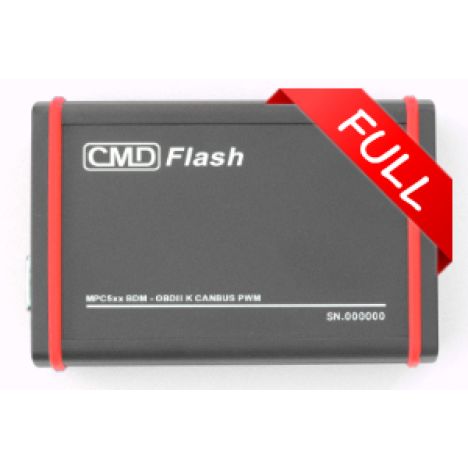

The CMDFlash Full Master tuning tool is an ECU reader/ programmer, supporting; BDM, EOBD K-LINE, EOBD CAN-BUS and EOBD PWM for all new generation ECU's. With BDM you need to unplug the ECU from the vehicle, open and connect it to the tool using a connector available on every Bosch EDC16, Marelli, Siemens and Delphi ECU's.

This tuning tool can be sold as a plug-in of our Map3d software or as stand-alone tool. The software allows you to read and write the EPROM (29bl802/ M58), the internal firmware and the serial e2prom containing the vehicles' codes. Checksum correction algorithm is automatic for all the ECU families, this means you do not have to care about checksums calculations.

With this tuning tool it is possible to read all the ECU's EPROM, and after a bad map tuning, a system hung, or an interrupted writing operation, it is always possible to restart the program operation to restore the ECU and start the vehicle.

All the ECU data can be stored in a single file with additional info such as brand, model, plague, chassis number, data, note, customer, etc. With search facilities and information directly integrated in Microsoft Windows Explorer.

CMDFlash Full Master includes:

• OBD KLine, CANBUS, DoiP ENET,
• VAG FRF/ ODX/ SGO Flasher,
• BOOT/ Bench interface for all supported processors: ST10, C167 , Renesas, TriCore, TC29x, MPC5777, and BDM - MPC5xx*,
• Read and write unencrypted files,
• All accessories included for OBD, BOOT and Bench,
• High current power supply suitable for BOOT, Bench and BDM,
• SGW adapter FCA group,
• One year free subscription (value > € 1100).

*MPC55xx BDM, positioning frames with adapters and Industrial Vehicles package are not included

Subscriptions
This tool utilizes an annual subscription to provide updates and automatic functionality. When purchasing this tool, one year of activation is included. Afterwards, the annual fee depends on the desired version: Master or Slave. The prices can be found on the subscription page of this tool.
