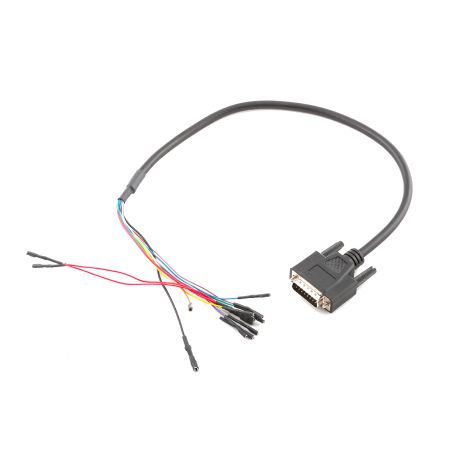

The Autotuner Tool universal cable with extra micro pins wires, is a cutting-edge tool designed to elevate tuning experience. This cable boasts universal compatibility, and with the added micro pins wires, it is now even more versatile, extending its application to Bosch MDG1 micro pins. It serves a crucial role in both bench and boot reading procedures.

The universal cable acts as the bridge between the vehicle's computer and the Autotuner tool. It enables communication for reading and manipulating data within the ECU.

Bench reading

• Disconnect the vehicle's battery before starting the procedure.
• Remove the ECU from the vehicle.
• Connect the universal cable between the ECU and the Autotuner tool on the bench.
• Follow the wiring plan provided for proper connection.

Boot reading

• If the ECU lacks a Bosch port the ATP050 probe cannot be used, use the universal cable along with a universal box.
• Connect the universal cable according to the wiring plan provided for the specific ECU.
• Establish a connection between the ECU and the Autotuner tool using the "BOOT" connector.
