AlientechUnlock module KESS3
The Alientech KESS3 unlock module allows you to unlock supported Bosch MD1 and MG1 ECUs directly in your workshop. Once unlocked, compatible ECUs can be read, written and backed up using KESS3 in BOOT mode, with BENCH access available for supported applications.
Requirements: KESS3 with activated Car Bench & Boot protocols and an active subscription.
Product code: KESS3UM000
| ECU-type | Family |
|
MD1CS003 |
Bosch MD1 |
|
MD1CS069 |
Bosch MD1 |
|
MD1CP007 |
Bosch MD1 |
|
MD1CS012 |
Bosch MD1 |
|
MD1CS004 (HW80) |
Bosch MD1 |
|
MD1CP006 |
Bosch MD1 |
|
MD1CS005 |
Bosch MD1 |
|
MG1CS042 |
Bosch MG1 |
|
MG1CS031 |
Bosch MG1 |
|
MG1CS002 |
Bosch MG1 |
Modern Bosch MD1 and MG1 ECUs feature security measures that can restrict access to their internal memory. The KESS3 unlock module provides the dedicated hardware required to unlock selected protected ECUs using supported KESS3 BOOT protocols. This allows professional tuners to perform the unlock procedure in-house, reducing the need for external ECU unlocking services.
The initial unlock procedure is performed in BOOT mode, which requires access to the ECU circuit board. Once a supported ECU has been successfully unlocked, compatible BENCH protocols allow subsequent reading and writing directly through the ECU connector, without reopening the ECU. Available operations depend on the specific ECU and the protocols supported by Alientech.

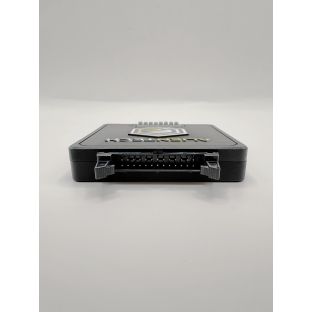

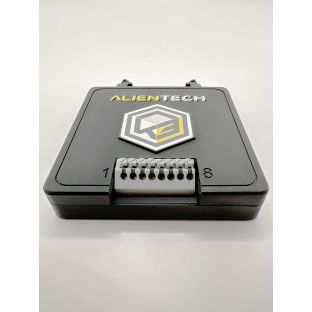

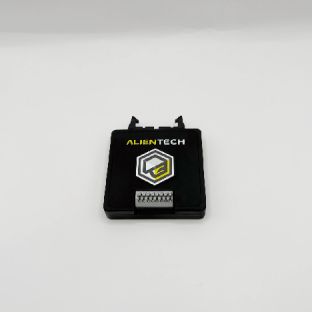

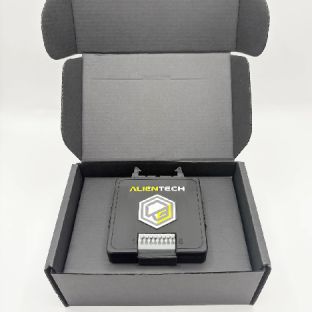

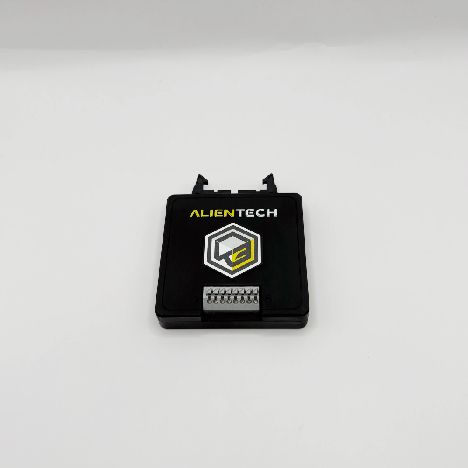

- Unlock Module hardware unit - 14AS00T11S
- 26-pin ribbon cable - 144300T119
- Positioning frame adapter - 14AS00T12S

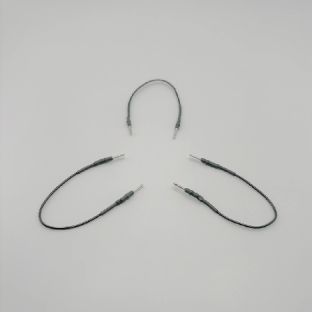

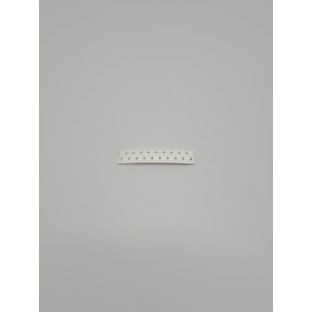

- Jumpers and connection cables
- VFL3 signal connection cables
- Ferrites
- Spare soldering wire
To use the KESS3 Unlock Module, you need:
- An Alientech KESS3 tool
- Activated Car and LCV Bench & Boot protocols
- An active KESS3 subscription
- A supported Bosch MD1 or MG1 ECU
The KESS3 programming tool is sold separately.
